Description
Product details
Application
Version
connecting cable with AMP plug
locking bolt is held floating for 2D tolerance compensation
Functionality
The furniture lock is locked if no power is supplied.
Material
Finish
Locking bolt: Gray
Keyed alike furniture locks:
Several EFL 1 furniture locks can be switched parallel (keyed alike) in combination with the CC 140 distributor.
Keyed alike/keyed different furniture locks:
Several EFL 1 furniture locks can be switched parallel (keyed alike) or individually (keyed different) in combination with the MLA 8 multi-lock adapter.
Using the MLA 8 also allows:
• Parallel operation of keyed alike and keyed different
• Combination with other EFL furniture locks with AMP plug (e.g. EFL 41) or RJ 10 plug (EFL 3)
The use of a marking gauge is mandatory for installing the EFL 1 furniture lock.
Note max. cable lengths, for more information see MLA 8 multi-lock adapter.
A furniture handle (hole distance 32 mm) can be screwed to the backside of the fixing plate.
Installation film on CD under Cat. No. 732.29.491. This film shows FT 120 and EFL 1 installation, start-up and reset.
Not suitable for furniture constructions with soft closing and self closing mechanisms.
A macro is required in order to use the feedback contact of the EFL 1C. Planning by Dialock specialist is required.
Technical data
| Voltage supply | 12 V DC | |
| Continuous current consumption | <50 mA | |
| Tensile loadwith door closed | With plastic locking bolt 200 N | With metal locking bolt 700 N |
| Door width | Carry out trial installation: With overlay door <240 mm, with inset door <450 mm | |
| Operating temperature | 0–50 °C | |
Supplied with

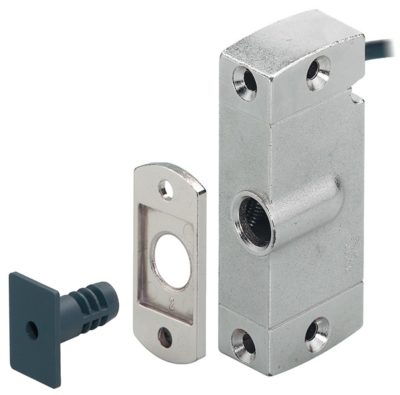

1 EFL 1 or EFL 1C furniture lock with connecting cable
1 Locking bolt with fixing plate
