Description
Product details
- With Tag-it™ ISO processor
Application:
- For installation in all types of cabinets such as wardrobes, lockers, cupboards, with wooden or MDF doors
- Supplied for right hand doors but can be adapted for left
- Stores up to 240 user keys
Operation:
- To lock close door shut and push in knob with authorised electronic key; bolt is then thrown and knob stays pushed in
- To unlock simply press knob again with key; bolt retracts to open door and knob is no longer depressed
Electronic control unit with LockerLock:
- Electronic circuit is activated by pressing the button with an electronic key
- Stores last 150 transactions
- LED shows programming and lock status
- Integrated real-time clock to programme time-limited locking authorisations
- Serial interface for the communication wth portable programming devices
Programming Options
- Simple Programming features – default setting
- Wellness function – user selects any one open cabinet or locker
Complete Programming
- Windows based modules for Personnel, Hotel and Clinic applications
Note: Dialock® programming software and hardware not included in this catalog, contact the Dialock® dept. for details.
Technical Data
Mounts on left hand or right hand door
Memorizes up to 228 user keys
Memorizes last 150 key uses (Complete Programming feature only)
Requires (4) 1.5 V/DC AA Premium Batteries (sold separately)
- Replacement after 10,000 cycles
- Under low power, locking is not possible
- Batteries accessible only with special tool
Includes locker label without number
Material
Color
Supplied with
Comprises:

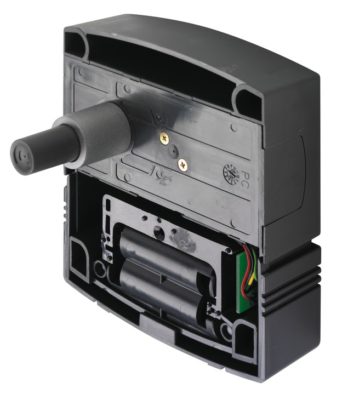

1x LL 100 LockerLock case, charcoal grey plastic case with stainless steel (1.4310) bolt
2x Cover plugs, charcoal grey plastic, to cover fixing screws
1x Electronic control unit with transmitter and receiver module for data exchange with electronic keys
Order reference
Striking angles and plates must be ordered separately
Programming key cards and electronic keys must also be ordered separately
Fixing materials must be ordered separately, depending on type of door used. Please inquire with our sales staff when ordering
