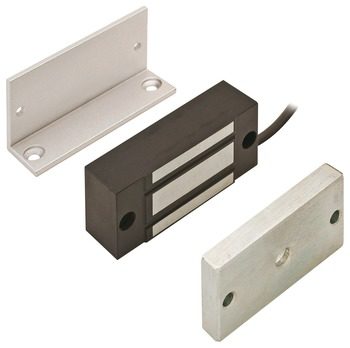

A compact medium-load locking mechanism that uses electromagnetic energy to capture and hold an armature plate. The armature is released on command when power is turned off. The MCL1 is strong enough for structural applications and can be remotely triggered by push button, RF Remote, and Dialock® Terminals.
- Compact and lightweight
- High tensile load retention
- Flexible mounting options
- Silent operation
- Releases under pre-load
- Fail safe operation
For door thickness
(1 1/8 – 2″) 28.5 – 50.8 mm
IP Code
IP65
Material
Lock and Armature plate: Steel
L-bracket: Aluminum
L-bracket: Aluminum
Finish
Chrome
Color
Black
Application
- Maintenance access panel lock
- Security cabinets and drawers
- Display showcases
- Sliding doors
- For use with self-closing doors (hinges) and drawers (slides)
- For use on doors, 1 1/8” – 2” thick
Technical data
| Physical & Performance | at 25° C (77°F) |
| (L x W x H) | |
| Magnetic Lock | 70 x 31 x 19 mm (2 3/4” x 1 1/4” x 3/4”) |
| Armature | 62 x 32 x 8 mm (2 7/16” x 1 1/4” x 5/16”) |
| Weight | 400 g (14 oz.) |
| Max holding load | 364 N (80 lbf.) |
| Environmental | |
| Operating temperature | -15º C to +40º C (5º F to +104º F) |
| Storage temperature | -55º C to +85º C (-67º F to +185º F) |
| Humidity (operating) | 95% RH at 50º C (+122º F) Non combustible |
| Corrosion resistant finish | |
| Fluid/Dust resistance | |
| Electrical | |
| Supply voltage | 12 VDC |
| Power consumption | < 1.2 W |
| Current consumption | 100 mA |
| Standards Compliance | |
| CE | |
Armature plate should “float” to allow alignment with magnet.
The MCL1 is a fail safe lock. When used with FT120, use the external relay, item 237.56.132.
For details contact Dialock® department at 1-888-437-7477 or 1-336-889-2322
Supplied with:
2 m (78 3/4”) cable and male AMP connection
Armature plate
L-bracket
Mounting screws
