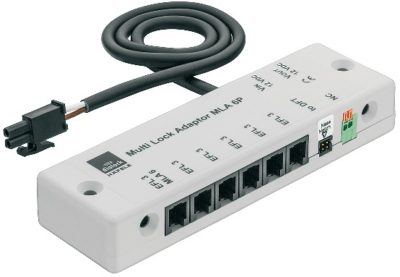

Description
- Easy wiring of the locks
- Modular connection of the MLA6 to a FT 120 V2 with cable 237.56.340 (included)
- Potential free clamp terminal delivers lock status signal
- Status of the monitoring contacts is available for third party applications such as additional alarm, messages, etc.
- No wiring required to route the EFL3 monitor contacts to the FT 120 V2
Technical data
| Housing dimensions | 136 x 42 x 22 mm |
| 4 x 35 mm or 4 x 55 mm screws | |
| (5 3/8” x 1 5/8” x 7/8”) | |
| Connection from: | |
| EFL3 lock | RJ10 |
| Connection to: | |
| FT120/B V2 | Molex |
| Contact rating: | 24V, 1A max. |
| Temperature Rnage: | 0 to 50°C (+32° to +122°F) |
Material
Plastic
Color
Gray
- For connecting EFL3 and the new FT 120 V2
- Enables the user to connect up to 6 EFL3s
- If two MLA6 adapters are daisy-chained together, 11 EFL3s can be controlled by a single FT 120
- Routes the signals from the lock’s monitoring contacts directly to the FT 120
Supplied with
Mounting block
0.5 m (19 11/16”) Cable
