Description
Product details
Application
Access to guest rooms in hotels, any type of interior door, equipment and furniture, lighting
Material
Color

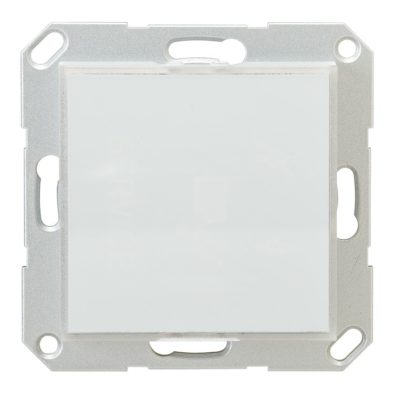

Wall reader housing: Transparent
Model series
Functionality
- Permanent live fed, intelligent wall terminal for special applications and design requirements
- tTouch-free activation of functions via Dialock keys: up to 4 freely programmable LED displays on reader head (standard version: – “Do not disturb” symbol, – “Please clean room” symbol and “Service”),
- Customized symbols/displays possible
- Selective control of up to 4 electrical devices
- Red/green LEDs for indicating the activation status
- For service personnel: Indication of programming status
- Infrared interface in wall reader for programming
- Electronic control unit: with integrated real-time clock for programming time restricted locking authorizations (setting of time zones), audit trail of all processes, with 4 input ports for analysing input signals (e.g. reed contact for door monitoring)
- Extension of functions by means of additional macro programs (optional)
Note
Connection cable between reader and control module is supplied by customer. Cable type is RS485, PLTC/CM 22 AWG, or CL3R C(UL) CMR 18AWG.
Total cable length to both readers should not exceed114’ 9 15/16” (35 m).
Reader is mounted into reader socket.
Minimum clearance between 2 readers is 9 13/16” (250 mm).
Wall terminals must be installed by a qualified electrician, in compliance with all governing codes.
Reader must be surface mounted if it is applied to a metal face of a control panel or similar application.
Technical data
| Wall reader | Degree of protection | IP20 | |
| Ambient temperature (operation) | –20 °C to +70 °C | ||
| Power supply | Via electronic control unit | ||
| Connection | Spring terminals 0.5 mm2 | ||
| Electronic control unit | Degree of protection | IP20 | |
| Ambient temperature (operation) | –20 °C to +70 °C | ||
| Voltage supply | 9–40 V DC or 8–36 V AC | ||
| Current consumption | <150 mA, ≥300 mA | ||
| Contact rating of relays | Voltage | ≤60 V DC or ≤125 V AC | |
| Switching current | ≤2 A (momentary) | ||
| Switching capacity | ≤30 W or ≤60 VA | ||
| Continuous current | ≤1 A | ||
| Data storage in the event of a power failure | ≥10 years | ||
| Relative humidity | 0–95 % (not condensed) | ||
| Connection | Screw terminals 2.5 mm2 | ||
| Hat rail installation M36 rail technology | 6 joint units | ||
Technical data
| Wall reader | Degree of protection | IP20 | |
| Ambient temperature (operation) | –20 °C to +70 °C | ||
| Power supply | Via electronic control unit | ||
| Connection | Spring terminals 0.5 mm2 | ||
| Electronic control unit | Degree of protection | IP20 | |
| Ambient temperature (operation) | –20 °C to +70 °C | ||
| Voltage supply | 9–40 V DC or 8–36 V AC | ||
| Current consumption | <150 mA, ≥300 mA | ||
| Contact rating of relays | Voltage | ≤60 V DC or ≤125 V AC | |
| Switching current | ≤2 A (momentary) | ||
| Switching capacity | ≤30 W or ≤60 VA | ||
| Continuous current | ≤1 A | ||
| Data storage in the event of a power failure | ≥10 years | ||
| Relative humidity | 0–95 % (not condensed) | ||
| Connection | Screw terminals 2.5 mm2 | ||
| Hat rail installation M36 rail technology | 6 joint units | ||
Application
Wall terminal sets, for controlling guest room access in hotels, any type of interior door, furniture and furnishings, lights, plastic transparent wall reader, plastic light grey electronic control unit housing.
Functionality
Permanent live fed, intelligent wall terminal, for special applications and design requirements, touch-free activation with Dialock key
- up to 4 freely programmable LED displays on reader head (standard version: – “Do not disturb” symbol, “Please clean room” symbol and “Service” symbol)
- Selective control of up to 4 electrical devices
- Red/green LEDs for indication of locking and unlocking
- For service personnel: Indication of programming status
- Infrared interface for programming
Electronic control unit
- With integrated real-time clock for programming time restricted locking authorisations (setting of time zones)
- With audit trail of all processes
- With 4 input ports for analysing input signals (e.g. reed contact for door monitoring)
Options (please order separately)
- Customized symbols/indication
- Different combinations of frames in all available colours of the Gira system 55 range
- Macros for extension of functions available on request
Order reference
Please order supplementary and optional components, e.g. energy control terminal, power supply and lock, separately.
The WT 100 Gira wall terminal set consists of one wall reader and one electronic control unit.
The frame must be ordered separately.
